Titanium Plated Platinum Electrode For Electrolysis Of Hydrogen-Rich Water
Application of titanium platinum-plated electrode in electrolysis water:
1.Product Features: platinum and titanium base firmly combined, stable performance, high output current density, small loss, long life;
2.Use: hydrogen-rich water cup, hydrogen-rich water machine, beauty instrument, electrolytic water cup, electrolytic hydrogen production equipment, etc.
Product Introduction
Selection of electrode materials for electrolysis of hydrogen-rich hydroelectricity
The principle of hydrogen-rich water cups, hydrogen-rich water dispensers and beauty instruments on the market is to generate water rich in hydrogen and oxygen molecules by electrolysis. The content and quality of hydrogen and oxygen molecules mainly depend on the selection of electrode materials. The quality of the electrode directly affects the quality of the water. The electrocatalytic reaction can take place fully and the service life of the cup body can be delayed if the electrode material is suitable. At present, hydrogen-rich water cup electrode usually adopts more materials as titanium platinum-plated electrode, which is plated on titanium substrate.
Characteristics and matters of platinum-plated titanium electrodes for hydrogen-rich cups；
1. With many years of electrode technology experience, platinum plated electrode for hydrogen-rich water cup has stable performance and long service life;
2. It needs to pay attention to the protection of the coating surface in the process of transportation, installation, and use is strictly prohibited to scratch, collision, friction surface. It should prevent oil pollution, strong corrosion substances and other effects on the titanium electrode;
3. Prevent the Cathode plate and positive plate short circuit. Do not configure the electrode in the opposite direction.
Product Parameters
The following specifications are commonly used by customers, and other specifications can be designed and customized.

The Base Material	The Coating Process	Platinum layer Thickness		Electrode Shape And Dimension	The Use of Voltage	The Thickness of The Electrode

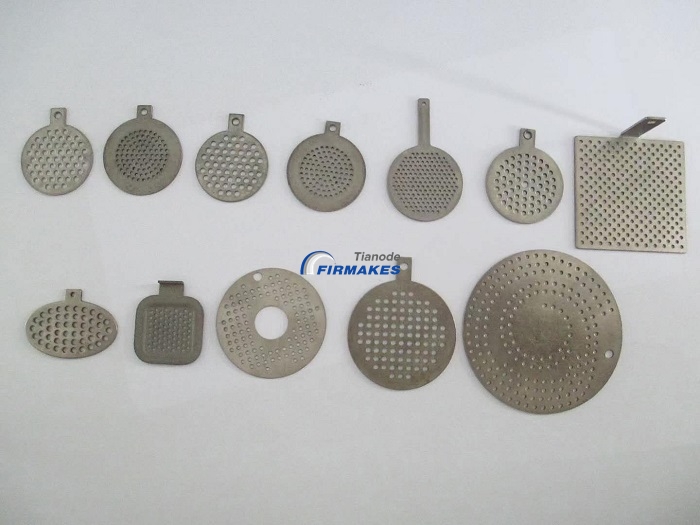

GR1/GR2	Electroplating or brush plating	0.3μm—10μm	Commonly used mesh, mesh ring, strip,Honeycomb, rod shape. Other special-shaped parts can be processed	Touch welding, spot welding or screw fixing	1—4V	0.3/0.5/1.0mm

Our products are widely used in electrolysis, PCB, electroplating, chemical industry, environmental protection, water treatment, cathodic protection and other electrolytic anode industrial fields such as: chlor-alkali industry, chlorate production, production of hypochlorite, perchlorate, persulfate electrolysis, electrochemical organic synthesis, production of electrolytic extraction of non-ferrous metal, electrolytic silver catalyst, manufacturing electrolysis copper foil, electrolytic oxidation recycling mercury, electrolysis, chlorine dioxide production, hospital wastewater treatment, electroplating factory bearing cyanide wastewater treatment, water disinfection, power plants and food products cooling circulating water treatment, woolen mill dyeing wastewater treatment, industrial water treatment, electrolysis legal system in acid and alkaline ionized water, copper zinc plated, rhodium, palladium plating, gold plating, plating lead, electrodialysis desalination, electrodialysis method take tetramethyl ammonium hydroxide, molten salt electrolysis, battery production, cathodic protection, in the production of the cathode foil, aluminum foil anodic oxidation, etc.
Our products are exported to more than 30 countries and regions, such as Europe, America, Southeast Asia and the Middle East, etc., and have been well received and confirmed by customers. "Quality first, Customer first" is the company's service objective. We will provide customers with appropriate, environmental protection, economic high quality products.
