Titanium Electrode For Chlor-Alkali Industry
Application areas
1. Electrolytic chlorine making equipment
2. Chlor-alkali industry
3. The preparation of chlorate
Product introduction
1. Chlor-Alkali industrial production process is often accompanied by strong corrosive media and chlorine, hydrochloric acid, ClO- and other strong metal corrosive media, so the selection of suitable materials is an important condition to control corrosion and prolong service life.
2. Above mentioned coexistence of corrosive medium in an electrolytic cell will accelerate corrosion of electrolytic cell and electrode materials, especially the anode corrosion and more graphite anode is used in the past, short life and polluting is big, then titanium base since ruthenium electrode coating application, because of its good corrosion resistance and long service life and is used by more and more.
Use characteristics of Titanium anode for chlor-alkali industry developed by Firmakes Titanium
1. After the improved formula, nanometer grain refinement, make the base material and coating better combination, increase the service life of the electrode,
2. Add a number of inexpensive metal elements, so that the coating uniform distribution and fusion, reduce the anode material cost, reduce the chlorine evolution potential, reduce the tank pressure, save energy consumption;
3. According to the characteristics of the chlor-alkali industry, electrodes and welding parts and accessories, are corrosion-resistant materials and take a multi-process processing in the process of use to avoid corrosion from the vulnerable parts resulting in electrode corrosion phenomenon;
4. Anodic oxide coating failure or reach the service life, can provide anodic repair and recoating technical services;
5. With years of technical experience, factory direct supply and preferential prices after-sales guarantee.

When developing electrode materials for the chlor-alkali industry, Firmakes Titanium adjusts and optimizes the electrode coating formula, adding iridium, tin and other elements to the Ru coating to reduce the chlorine evolution potential and increase the electrode life. According to the characteristics of the chlor-alkali industry, all welding parts and accessories are corrosion-resistant materials, to prevent the anode in the operation of improper corrosion from the parts and thus affect the use of the anode.

Product parameters
The following are general parameters, which can be customized to your specifications.

Base Material	Electrode Coating	Chloride Evolution Potential	Polarizability	Enhancement Life Test	Shape

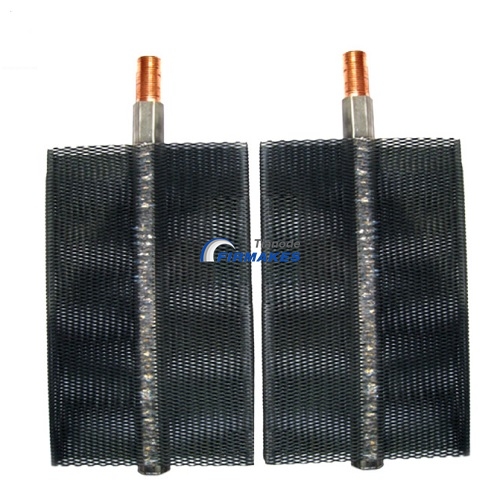

GR1/GR2	Ruthenium system mixed oxide	≤1.13V	≤30mV	≥3000min	Commonly used shape cage type, unipolar multi-plate anode group or other forms, can also be designed and customized

Our products are widely used in electrolysis, PCB, electroplating, chemical industry, environmental protection, water treatment, cathodic protection and other electrolytic anode industrial fields such as: chlor-alkali industry, chlorate production, production of hypochlorite, perchlorate, persulfate electrolysis, electrochemical organic synthesis, production of electrolytic extraction of non-ferrous metal, electrolytic silver catalyst, manufacturing electrolysis copper foil, electrolytic oxidation recycling mercury, electrolysis, chlorine dioxide production, hospital wastewater treatment, electroplating factory bearing cyanide wastewater treatment, water disinfection, power plants and food products cooling circulating water treatment, woolen mill dyeing wastewater treatment, industrial water treatment, electrolysis legal system in acid and alkaline ionized water, copper zinc plated, rhodium, palladium plating, gold plating, plating lead, electrodialysis desalination, electrodialysis method take tetramethyl ammonium hydroxide, molten salt electrolysis, battery production, cathodic protection, in the production of the cathode foil, aluminum foil anodic oxidation, etc. Products are exported to Europe, America, Southeast Asia, the Middle East and other more than 30 countries and regions, get customer praise and affirmation. "Quality first, customer first" is the company's service tenet. We will provide customers with suitable, environmental protection, economic quality products.
