Electrolytic sodium chloride solution to produce sodium hypochlorite disinfection solution electrode material, titanium base noble metal mixed oxide coating, after several process improvements, nano refined grain coating, which is better adhesion with the base material, higher electrocatalytic activity, strong corrosion resistance and longer service life.
Can be applied to:
Sodium hypochlorite generator
Chlorine dioxide generator
Electrolytic seawater chlorine production equipment
Working principle of ruthenium-iridium sodium hypochlorite coated titanium electrode
The titanium electrode group of sodium hypochlorite generator is a new anode material suitable for sodium hypochlorite generator, which can be used in on-site production of sodium hypochlorite disinfection equipment.
Working Principle: under the action of positive and negative electrodes in the electrolytic cell, a series of electrochemical reactions take place to generate sodium hypochlorite disinfection solution.
Total reactive：NaCl + H2O → NaClO + H2↑
Anodic reaction：2NaCl→2Na++ Cl2↑+2e-
cathode reaction：2H2O+ 2e- → 2OH-+H2↑
Solution reaction：2NaOH + Cl2 → NaCl + NaClO + H2O

Use characteristics of titanium sodium hypochlorite electrode group:
1. To design different specifications of electrode group, tube, tube, plate electrode group according to the sodium hypochlorite needs and installation requirements. Monopole electrodes are suitable for smaller types of electrolytic cells. The complex electrode group is suitable for relatively large electrolytic cell, and the connection structure is simple, reduce the resistance on the connector, reduce the electrolytic voltage, improve the electrolytic efficiency.
2. Core electrode using pure titanium as base material, surface coating by the special craft has the precious metal such as ruthenium iridium oxide, after our many years research and development of electric catalytic coating formula, nanoscale fine grains, with the substrate binding force is very good, has better electric catalytic activity and electrolytic oxidation resistance, better than other electrode can produces electrolytic reaction, provide better conversion efficiency.
3. The optimized bipolar design is more reasonable than the old design, which can reduce the connectors in the electrolytic cell, improve the electrolytic efficiency and reduce energy consumption. In the case of inverted pole use, it can still play a stable electrolytic efficiency, and a long service life.
4. Independent research and development, mature technology application experience, has provided electrolytic technology solutions for many customers at home and abroad.
5. Provide anode back repair coating technology services, after reasonable use of the electrode lost activity and repair and new electrode performance is basically stable, cost saving for customers, after-sales service is guaranteed.
Some technical parameters (common parameters in the table, other specifications can also be customized)

Effective Chlorine Production	20-50g/h	100g/h	300g/h	500g/h	1000g/h
DC  Voltage	DC/V≤5V	DC/V≤5V	DC/V≤20V±5	DC/V≤30V	DC/V≤40V
DC  Current	DC/A≤60A±20%	DC/A≤125  A±20%	DC/A≤84A±20%	DC/A≤120A±20%	DC/A≤156A±20%
Brine  Concentration	2%—5%	2%—5%	2%—5%	2%—5%	2%—5%
Effective Chlorine Concentration	6000-10000ppm	6000-10000ppm	6000-10000ppm	6000-10000ppm	6000-10000ppm
Service Life	1-3Y,3-5Y,＞5Y	1-3Y,3-5Y,＞5Y	1-3Y,3-5Y,＞5Y	1-3Y,3-5Y,＞5Y	1-3Y,3-5Y,＞5Y

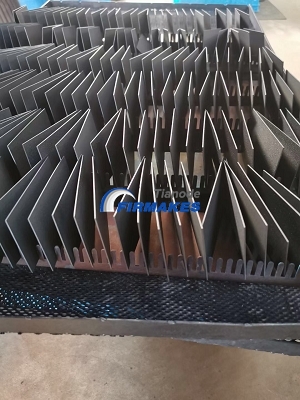

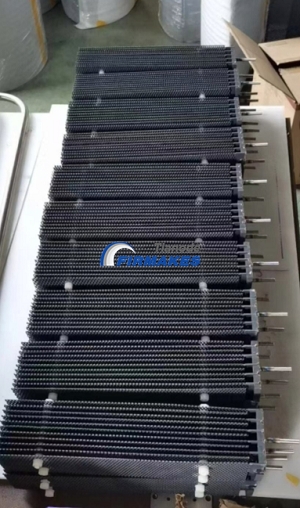

The structure design of sodium hypochlorite titanium electrode includes plate structure and pipe network structure
Application scope:
Electrolytic sodium hypochlorite generator
Electrolytic hypochlorite generator
Electrolysis chlorine dioxide generator
Electrolytic seawater chlorine production equipment
Electrochemical water treatment unit
Electrocatalytic oxidation equipment
Swimming pool disinfection equipment
Electrolysis disinfection equipment, etc

Our products are widely used in electrolysis, PCB, electroplating, chemical industry, environmental protection, water treatment, cathodic protection and other electrolytic anode industrial fields such as: chlor-alkali industry, chlorate production, production of hypochlorite, perchlorate, persulfate electrolysis, electrochemical organic synthesis, production of electrolytic extraction of non-ferrous metal, electrolytic silver catalyst, manufacturing electrolysis copper foil, electrolytic oxidation recycling mercury, electrolysis, chlorine dioxide production, hospital wastewater treatment, electroplating factory bearing cyanide wastewater treatment, water disinfection, power plants and food products cooling circulating water treatment, woolen mill dyeing wastewater treatment, industrial water treatment, electrolysis legal system in acid and alkaline ionized water, copper zinc plated, rhodium, palladium plating, gold plating, plating lead, electrodialysis desalination, electrodialysis method take tetramethyl ammonium hydroxide, molten salt electrolysis, battery production, cathodic protection, in the production of the cathode foil, aluminum foil anodic oxidation, etc.
Our products are exported to more than 30 countries and regions, such as Europe, America, Southeast Asia and the Middle East, etc., and have been well received and confirmed by customers. "Quality first, Customer first" is the company's service objective. We will provide customers with appropriate, environmental protection, economic high quality products.
