MMO Auxiliary Anode For Cathodic Protection
Application Of MMO Anode Belt In Impressed Current Cathodic Protection
1. Anti-corrosion of the inner wall of the pipeline
2. Ground storage tank, water storage tank
3. Condensing water tank, heat exchanger, water treatment equipment
4. Anticorrosion of ships, roads, Bridges and building steel bodies
5. Continuous horizontal floor bed, non-continuous horizontal floor bed, shallow buried vertical floor bed
MMO titanium anode strip is a kind of insoluble anode (DSA anode). The surface of the titanium strip is coated with a layer of noble metal oxide with high electrocatalytic activity by traditional thermal decomposition method.
It is usually used for the cathodic protection of the bottom of ground storage tanks and reinforced concrete structures. It has become a more suitable auxiliary anode material for the network anode cathodic protection system at present.
Method Of Use:
It is generally used as an auxiliary anode for impressed current cathodic protection. The intersection point is connected with special welding machine spot welding, forming a grid grid, the power point connection is connected with special anode joint, with advantages of simple installation and convenient construction.
Note: Coating ratio can be adjusted according to different production life and output current requirements. The MMO strip anode coating type, thickness, and anode specifications can be customized based on the desired current density, medium environment used, and design life.
Purpose: Used for bottom protection of various large storage tanks. For applications, it can be laid directly in wet or salty sand without any carbon-based filling material.
Application environment:
A: Good sandy environment
B: There is chlorine, oxygen, or a mixture of both
C: Usually used for tank bottoms and reinforced concrete structures.
The MMO titanium anode strip produced by Firmakes Titanium has a very low loss rate in various cathodic protection environments and has a high electrochemical stability, even in low pH value and the environment containing chloride ion also has good chemical stability and its life can reach more than 50 years.

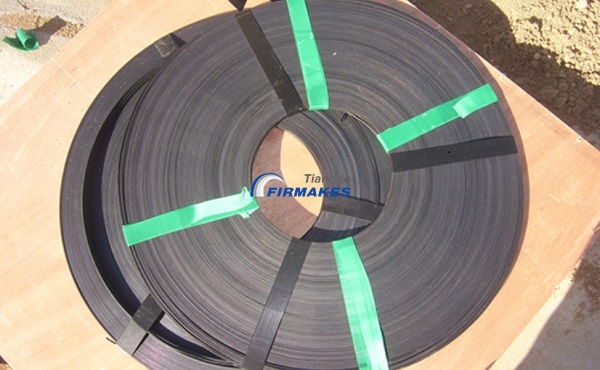

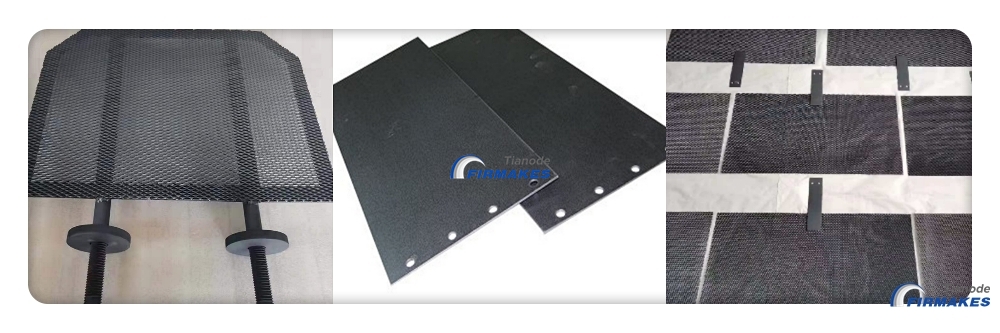

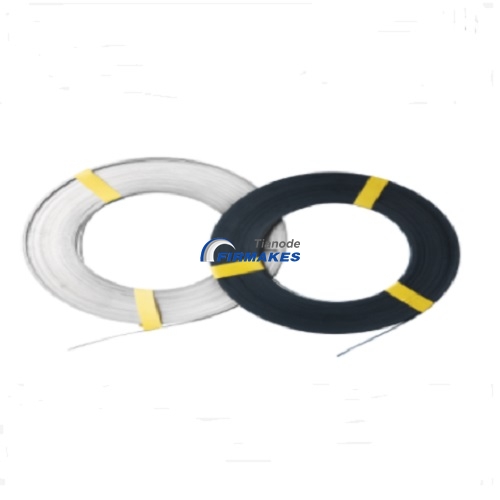

The following are the actual pictures of MMO titanium anode tape/titanium conductive tape customized by some customers for your reference



Coating Layer	Titanium Base Material	Specification	Standard Length	Design Life
Iridium Tantalum/Ruthenium-Iridium mixed oxide (MMO Coating)	GR1\GR2	6.35mm×Thickness 0.635mm 12.7mm ×Thickness  0.9mm	152m ／coil or 150 m ／coil	20 years—50 years

Product Parameters
Our products are widely used in electrolysis, PCB, electroplating, chemical industry, environmental protection, water treatment, cathodic protection and other electrolytic anode industry fields, such as: Chlor-alkali industry, chlorate production, hypochlorite production, perchlorate, persulfate electrolysis, electrochemical organic synthesis, electrolytic extraction of non-ferrous metals, electrolytic silver catalyst, electrolytic copper foil manufacturing, electrolytic oxidation recovery of mercury, electrolysis, chlorine dioxide production, hospital wastewater treatment, electroplating plant cyanide wastewater treatment, water disinfection, power plant and food cooling circulating water treatment, dyeing and dyeing waste in wool mill Water treatment, industrial water treatment, electrolytic acid and alkaline ionic water, copper plating, rhodium plating, palladium plating, gold plating, lead plating, electrodialysis desalination, electrodialysis method to take tetramethylammonium hydroxide, molten salt electrolysis, battery production, cathodic protection, production of cathode foil, aluminum foil anodic oxidation, etc.
Products are exported to Europe, America, Southeast Asia, the Middle East and other more than 30 countries and regions, get customer praise and affirmation. "Quality first, customer first" is the company's service tenet. We will provide customers with suitable, environmental protection, economic quality products.
