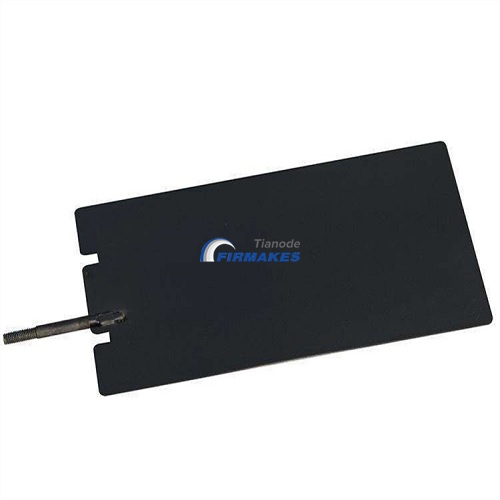

Insoluble Titanium Anodes For Electroplating
Application areas
1. Precious metal plating (gold, silver, rhodium, palladium);
2. PCB board plating;
3. Hexavalent chromium plating;
4. Trivalent chromium plating;
5. Tin plate, galvanized steel plate;
6. Copper, nickel and other metal plating.
Product introduction
Introduction of auxiliary anodes for electroplating
The auxiliary anodes for electroplating can be generally divided into soluble and insoluble anodes, such as chromium plating, nickel plating, etc., are plated with metal as the anode, the purpose is to make the metal ions in the solution be effectively supplemented. But most electroplating process is to use the way of adding salt to supplement metal ions, such as precious metal plating, trivalent chromium plating, etc.
Selection and application of auxiliary anode materials for electroplating
The auxiliary anode material for electroplating, generally inert anode is put into the lower position of the product, increasing the low potential current intensity and the deposition speed and uniformity of the coating. Traditional useful auxiliary anode stainless steel, zinc, lead, lead tin alloy, nickel anode materials such as, but will appear in the process of electroplating corrosive solution, metal ion precipitation pollution, short service life and frequent replacement of affected the plating bath uniformity, aesthetic, pollution, increase the plating cost, therefore, many customers are looking for an alternative to the traditional auxiliary anode material. Noble metal mixed oxide coating titanium anode has strong corrosion resistance, high electrocatalytic activity, small anode polarization, long service life and improve the stability of bath and uniformity of coating. This auxiliary anode material belongs to an insoluble anode and the cost of long-term use is not much different from that of cheap traditional auxiliary anode and the use effect is relatively ideal.
The use characteristics of insoluble titanium anode in electroplating
1. The products manufactured by Firmakes Titanium are coated with an improved formula. The oxide is more uniform in combination with the substrate, which provides excellent corrosion resistance and electrocatalytic activity.
2. When using of insoluble titanium anode, anode itself without metal ions and impurities precipitation, to avoid plating solution pollution, to avoid the anodic mud phenomenon caused by the use of traditional soluble anode, coating to keep bright and beautiful;
3. Various specifications can be customized according to the actual working conditions;
4. Provide technical service and after-sale technical support for anode plate restoration and coating, save maintenance cost for customers.
Special insoluble auxiliary anodes for electroplating:
1. Noble metal oxide active titanium anode (Ti/MMO)
2. Platinum-plated titanium anode (Ti/Pt anode)
3. Platinum-plated niobium anode (Nb/Pt anode)
4. Titanium base lead dioxide titanium anode (Ti/PbO2 anode)
According to the actual working conditions, we can design and customize various specifications of insoluble anodes for electroplating

Our products are widely used in electrolysis, PCB, electroplating, chemical industry, environmental protection, water treatment, cathodic protection and other electrolytic anode industrial fields such as: chlor-alkali industry, chlorate production, production of hypochlorite, perchlorate, persulfate electrolysis, electrochemical organic synthesis, production of electrolytic extraction of non-ferrous metal, electrolytic silver catalyst, manufacturing electrolysis copper foil, electrolytic oxidation recycling mercury, electrolysis, chlorine dioxide production, hospital wastewater treatment, electroplating factory bearing cyanide wastewater treatment, water disinfection, power plants and food products cooling circulating water treatment, woolen mill dyeing wastewater treatment, industrial water treatment, electrolysis legal system in acid and alkaline ionized water, copper zinc plated, rhodium, palladium plating, gold plating, plating lead, electrodialysis desalination, electrodialysis method take tetramethyl ammonium hydroxide, molten salt electrolysis, battery production, cathodic protection, in the production of the cathode foil, aluminum foil anodic oxidation, etc.
Our products are exported to more than 30 countries and regions, such as Europe, America, Southeast Asia and the Middle East, etc., and have been well received and confirmed by customers. "Quality first, Customer first" is the company's service objective. We will provide customers with appropriate, environmental protection, economic high quality products.
